MrCool ProDirect PSC vs. MrCool
ECM: Understanding the difference in air handler motors.
When comparing MrCool ProDirect air handlers, you might encounter models equipped with either a PSC (Permanent Split Capacitor) motor or an ECM (Electronically Commutated Motor). The core difference lies in the technology and how each motor operates the blower fan within the air handler.
PSC (Permanent Split Capacitor) motors
- These are traditional single-speed motors, meaning they typically run at one fixed speed (like an old-school light switch: either on at full capacity or off).
- They operate off a split power supply and use a capacitor to energize the auxiliary winding, allowing for the motor to develop the necessary starting torque.
- PSC motors are generally more affordable upfront but are less energy efficient compared to ECM motors.
- They may also be louder in operation and can wear down faster over time, potentially requiring capacitor replacements.
ECM (Electronically Commutated Motor) motors
- ECMs are more advanced, variable-speed motors controlled by a smart circuit board.
- They can adjust their speed and performance based on the specific needs of your HVAC system in real-time, meaning they can ramp up or down as needed.
- While ECMs may have a higher initial cost, they offer significant advantages in terms of energy efficiency, potentially using up to 75% less electricity than PSC motors in some cases.
- ECMs provide better comfort through consistent airflow and improved humidity control due to their variable-speed capabilities.
- They are also known for quieter operation and longer lifespan due to fewer mechanical parts and reduced wear compared to PSC motors.

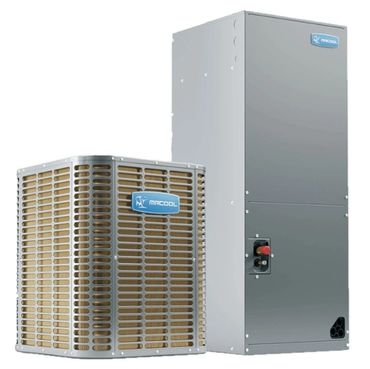

MrCool ProDirect series and the motor choice
MrCool's ProDirect series offers air handlers utilizing both PSC and ECM motors, allowing for customization based on your needs and budget.
- For instance, a 3 Ton ProDirect PSC Air Handler is described as offering exceptional reliability and efficiency with a SEER2 rating of 15.2.
- However, a 2 Ton ProDirect ECM Air Handler is highlighted for its high-efficiency multi-speed ECM blower motor and the ability to reach a SEER2 rating of up to 15.2.
In summary
Choosing between a PSC and ECM motor in your MrCool ProDirect air handler depends on your priorities:
- PSC motors offer a more budget-friendly initial cost with reliable, single-speed performance.
- ECM motors represent a higher upfront investment but deliver significant long-term energy savings, enhanced comfort, and quieter operation, with the potential to qualify for energy rebates in some areas.
The U.S. Department of Energy now mandates the use of ECM motors in many new HVAC systems due to their energy-saving potential. Therefore, while PSC options are still available, particularly for replacements, ECMs are becoming the standard for modern, energy-efficient HVAC systems.
